Exalux Control Sky Wireless DMX Controller

EXALUX™ CONTROL SKY offers up to 5 DMX applications in a single and compact box that can be powered with an external power supply (10-24VDC) ,a V-lock battery (14,4VDC) or a PowerBank (5VDC).

CONTROL SKY includes the SKY APP which allows you to control up to 20 ARRI SkyPanel® fixtures (DMX mode 30) in a simple and intuitive way. CONTROL SKY also includes the TX APP that allows to use the device as a CRMX transmitter.

CONTROL SKY works perfectly with the EXALUX™ CONNECT CRMX family such as RX100 and RX100s wireless receivers. CONTROL SKY also works perfectly with other CRMX devices available on the market.

EXALUX™ Wireless Solutions replaces your DMX cables by a wireless link. One CRMX transmitter can be linked to a large number of CRMX devices such as receivers, dimmers or LED fixtures.

Technical Specifications

Display: TFT 5.0’’, 800x480 pixels, Capacitive Touch, Super bright

Control: Master & settings (knobs), Memory store/restore, CMRX Link, Black-out, Lock

DMX In/Out: Input: Neutrik XLR 5 pins Male | Output: Neutrik XLR 5 pins Female

Power Consumption: Min: ~2,1W (Screen Off) MAX: ~4,2W (Screen & CRMX On) STANDBY: ~0,025W

Power Input: Neutrik XLR 4 pins (10-24VDC), Micro USB (5VDC)

Housing / Mounting: Aluminum

IP Rating: IP30

Certifications: CE, RoHS

Weight: 700g (without battery)

RADIO INTERFACE

Standard/technology: CRMX by LumenRadio™

Frequency: 2,402 ~ 2,480 GHz

Antenna: RP-SMA (female)

RF output: 20 dBm (100mW)

RF modulation: GFSK

Range: 500-1000m

DMX INTERFACE

Protocol: DMX512-A

Universe support: 1

DMX Input: Neutrik XLR 5 pins male

DMX Output: Neutrik XLR 5 pins female

OPERATING CONDITIONS

Input Voltage (USB): Min: 4,5 | Typ: 5 | Max: 5.5

Input Voltage (XLR4): Min: 10 | Typ: 14 | Max: 24

Storage T°: Min: -30°C | Max: +80°C

Operating T°: Min: -20°C | Typ: 25°C | Max: +60°C

BENEFITS OF THE EXALUX™ CONNECT RX100S

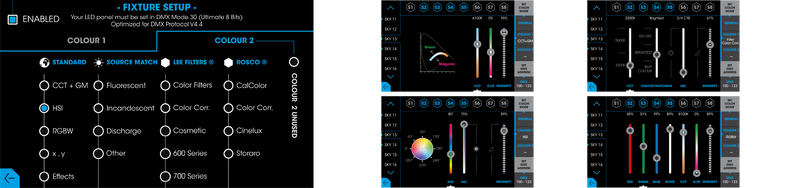

DESIGNED FOR THE SKYPANEL®

CONTROL SKY has been designed to fully use the creative possibilities of SKYPANEL® without any headache!

Thanks to the SKY APP, you can control up to 20 SkyPanel® when DMX P30 mode is set : CCT+GM, HSI, RGBW, (X,Y), Effects, Source Matching, Filters.

The settings made in SKY APP are automatically uploaded to the FADER APP.

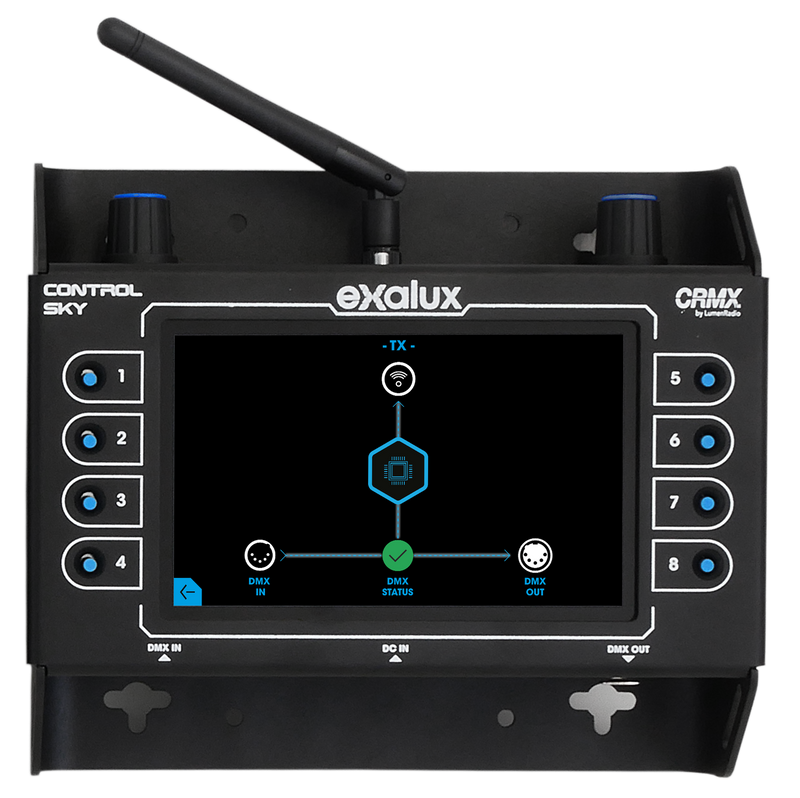

BUT IT'S ALSO A WIRELESS DMX TRANSMITTER!

TX APP turns the CONTROL SKY into a CRMX transmitter. The DMX data bytes received on the DMX input are wirelessly transmitted by the integrated CRMX transmitter.

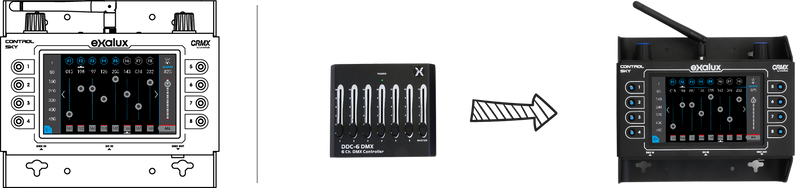

A UNIVERSAL CONSOLE FOR ALL DMX DEVICES

FADER APP works the exact same way than your hardware DMX controller you used for years. Every fader is linked to a DMX address. Easy and friendly to use!

You choose to « Master » your fader if you want to. Settings can be saved in one of the 8 available memories and reload with the PLAYER APP.

The settings made in SKY APP are automatically uploaded to the FADER APP.

A TINY DMX RECORDER THE CHERRY ON THE CAKE!

RECORDER APP allows to record 512 DMX channels in real time. 8 memories | 80s recording @44Hz max.

3-IN-1 MEMORIES PLAYER = 24 MEMORIES

PLAYER APP allows to play the DMX memories that have been recorded with the FADER, SKY and RECORDER Apps.

LumenRadio CRMX™

Based on LumenRadio CRMX™ technology, EXALUX™CONTROL ONE brings DMX fidelity without any latency.
