DIODIFY LED Lighting Technology.

Our LED flexible sheets and tapes are versatile enough to control the size and placement of our lights in lightboxes, illuminated panels, interiors, commercial spaces, and other unique and custom applications.

DIODIFY LED SHEET PRODUCTS

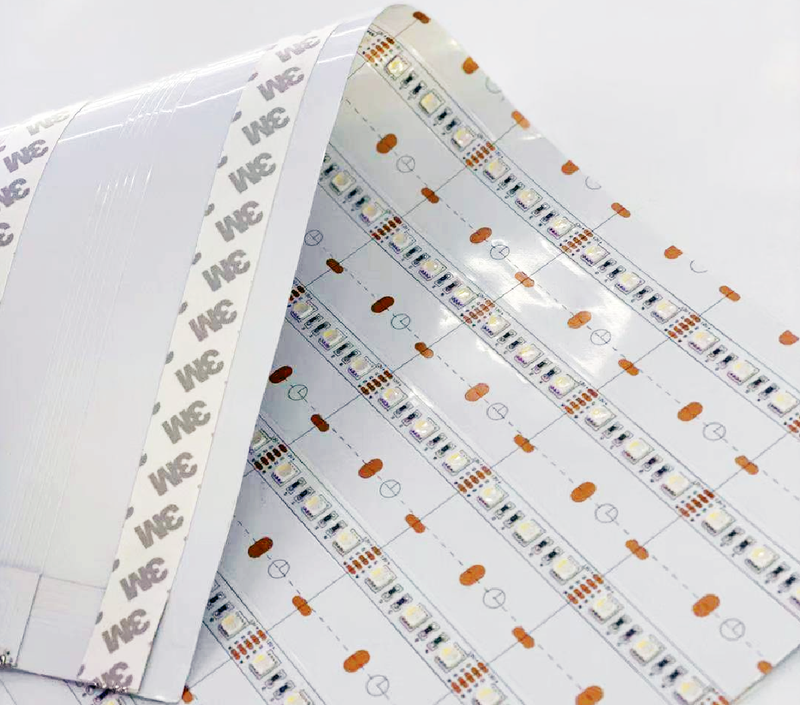

DIO-RGBW Color Mat (Non-Pixel Mapped)

Sheet Size: Sheet Size: 2300mmX860mm, Input Voltage: 12V DC, Power: < 200Watt, RGBW W=6000K, IP: non-water-proof Constant voltage driving. 945 PIXEL in total

Individual Size: Sheet Size: 499mmX239mm, Input Voltage: 12V DC, Power: <90Watt, RGBW W=6000K, IP: non-water-proof Constant voltage driving. 180 diodes

DIO-6K Color Mat 90X33 (Non-Pixel Mapped)

Sheet Size: Color Mat White 6000 Kelvin- Sheet Size: 90.5" X 33.86" (2300mmX860mm), Input Voltage: 12V DC, Power: < 200Watt, White=6000K, IP: non-water-proof Constant voltage driving. 945 Diodes in total

Individual Size: Color Mat White 6000 Kelvin Individual Sheet - Sheet Size: 19" x 9" (499mmX239mm), Input Voltage: 12V DC, Power: < 90Watt, W=6000K, IP: non-water-proof Constant voltage driving. 180 Diodes in total.

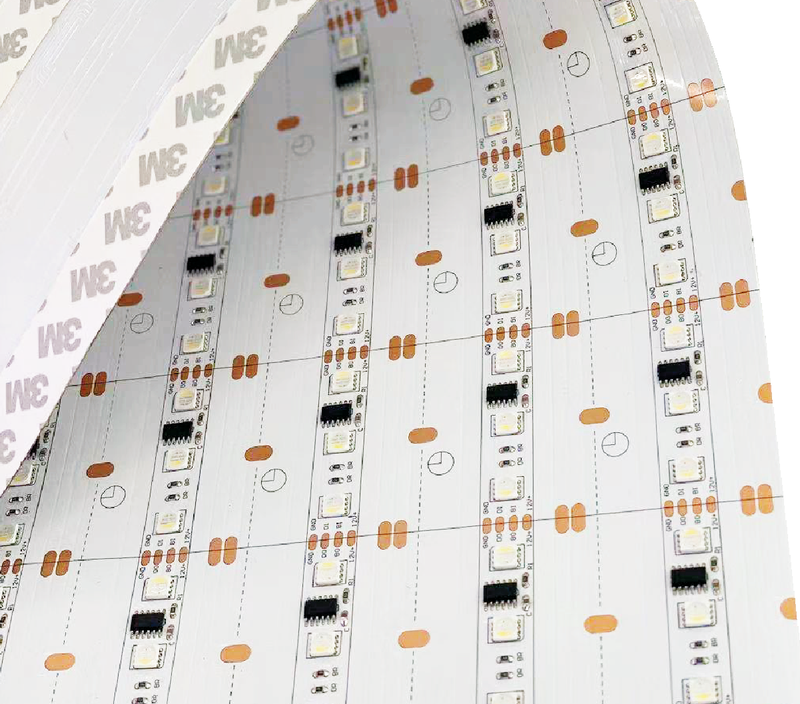

DIO-RGBW MATRIX MAT 90x33 (Pairs with NEBULA)

Sheet Size: (2300mmX860mm), Input Voltage: 12V DC, Power: < 200Watt, RGBW W=6000K, IP: non-water-proof, Constant voltage driving. 945 Diodes in total

Individual Size: 19" x 9" (499mmX239mm), Input Voltage: 12V DC, Power: < 90Watt, W=6000K, IP: non-water-proof, Constant voltage driving. 180 Diodes in total. Constant voltage driving. 180 PIXELS in total.

DIODIFY LED TAPE PRODUCTS

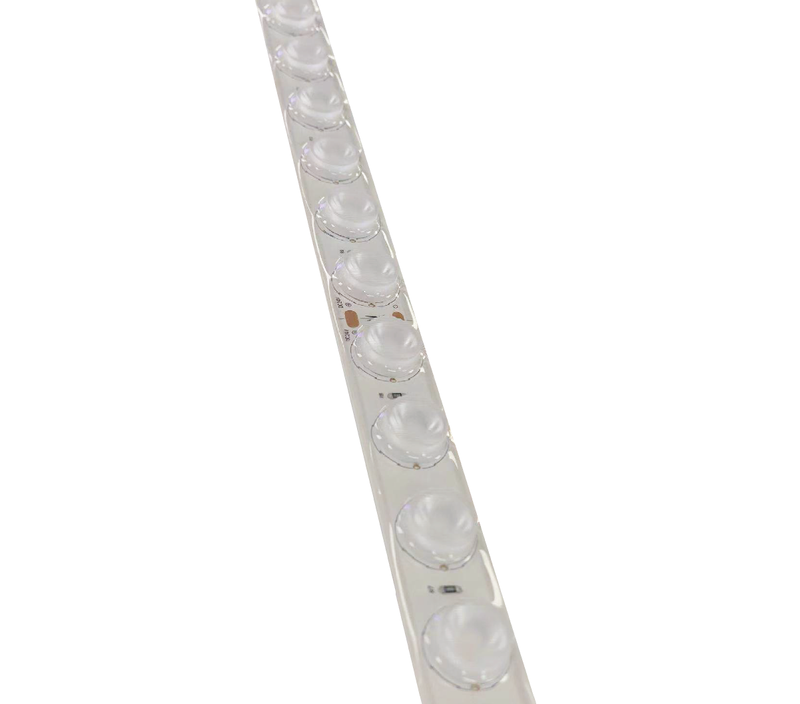

DIO-RGBW Pixel Tentacle Tape (Pairs with NEBULA)

5050 Pixel RGBW IP67 6000K 12V 42LED 5M 45degree 45 DEGREE lens.

LED strip specification:

• SMD 5050 RGBW LED, 6000K, PixelCRI>8,

• PCB color: white, 20mm width, 3OZ,

• Power: 16W/meter, 12V DC input,

• 42LED/meter,

• CE ROHS,

• IP67, with 45 degree lens,

• AWG20 connector in both ends,

• Packing: 5M/roll

DIO-RGBW Tentacle Tape (NON-PIXEL MAPPED)

DIO-RGBW-Tentacle Tape 5m - 5050 RGBW IP67 W=6000K 24V 42LED 5M 45degree.

LED strip specification:

• SMD 5050 RGBW LED, 6000K,CRI>8,

• PCB color: white, 20mm width, 3OZ,

• Power: 11.5W/meter, 24V DC input,

• 42LED/meter,

• CE ROHS,

• IP67, with 45 degree lens,

• AWG20 connector

DIO-6k Tentacle Tape (NON-PIXEL MAPPED)

DIO-Tentacle Tape 6000K IP67 - 2835 IP67 6000K 24V 42LED 5M 45degree.

LED strip Specification:

• SMD 2835 LED, 6000K, CRI>80,

• PCB Color: white, 20mm width,

• Power: 15W/meter, 24V DC input,

• 42LED/meter,

• CE ROHS,

• IP67, with 45x13 degree lens,

• AWG20 DC female connector.

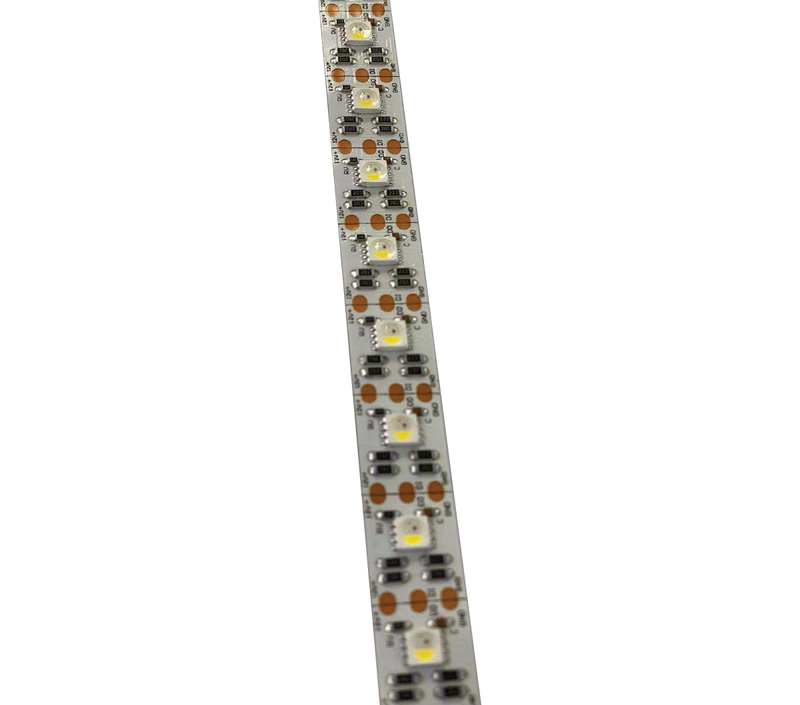

DIO-RGBW MATRIX TAPE

• 5050 SMD IP65 RGBW 6000k 12V SPI SK681

• Power consumption: 40 W/M

• REEL LENGTH: 16.4FT / 5M

• Cuttable segments: 0.66 in - 16.7mm

• LED DENSITY: 18 LEDS/FT/60 LEDS/M

• Limiting Control Method: CV - Constant Voltage
