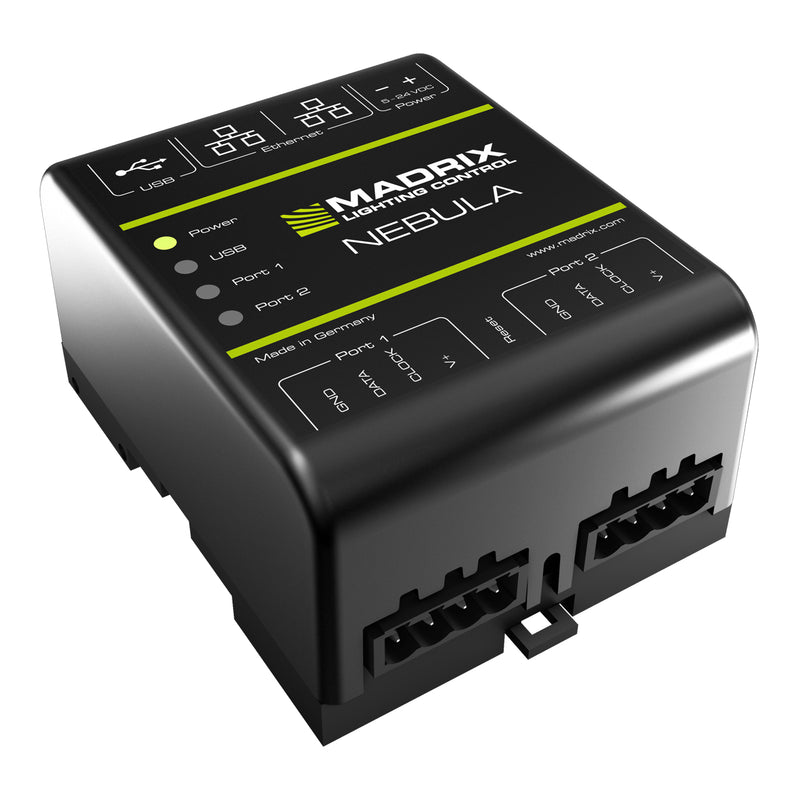

NEBULA: The versatile LED pixel-tape driver to directly control a wide range of digital LEDs.

The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.

FEATURES

SPI Converter & Direct Connection

Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

Art-Net / Streaming ACN / USB

Network data is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

Designed For DIN Rails Or Walls

Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

Sync Mode & Daisy-Chain Support

MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all ports and across devices to get an optimal image on the LEDs without visual interruptions. 2 Ethernet ports allow linearly daisy-chaining several devices together.

Invaluable Features

The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

Quality Output Of 12 Universes

Each device drives up to 2,048 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.

The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.

Connectivity

2x OUT (via pluggable screw terminals)

2x RJ45 Ethernet ports

1x USB port

1x Power (via pluggable screw terminal)

Package Contents 1x MADRIX NEBULA / 1x Set of screw terminals (2x 4-pin and 1x 2-pin) / 1x USB 2.0 cable (certified) / 2x Wall-mount brackets / 1x Technical manual / 1x quick start guide

TECHNICAL SPECIFICATION

Supply Of Power

DC 5 V – 24 V; over
A) 2-pin, pluggable screw terminal (12 A max.), B) 5 V USB, C) Port 1 or 2 sourced from LEDs;
6 A max. load per port when supplying through to LEDs

Power Consumption

< 1.5 W (300 mA) during normal operation (500 mA max. fused)

Network Protocols

Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

Data Output

8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)

Supported LEDs

APA101 / APA102 / APA104 / APA106 / GS8206 / GS8207 / GS8208 / GW6201 / See additional LED's at MADRIX website.

Ports

2x ports (Via 2x 4-pin, pluggable screw terminals)

Ethernet

2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)

Ethernet Switch

Lookup Table (ALU) for 1024 unicast MAC addresses

USB

1x port, USB 2.0, type-B female socket

Handling

5 status LEDs (+ 4 network status LEDs)

Case

Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

Dimensions

90 mm x 70 mm x 46 mm (Length x Width x Height)

Weight

110 g | 132 g incl. screw terminals and wall mounts

Temperature Range

-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)

Relative Humidity

5 % to 80 %, non-condensing (Operating / Storage)

IP Rating

IP20

Certificates

CE, EAC, FCC, RoHS

Warranty

5 years of limited manufacturer's warranty
