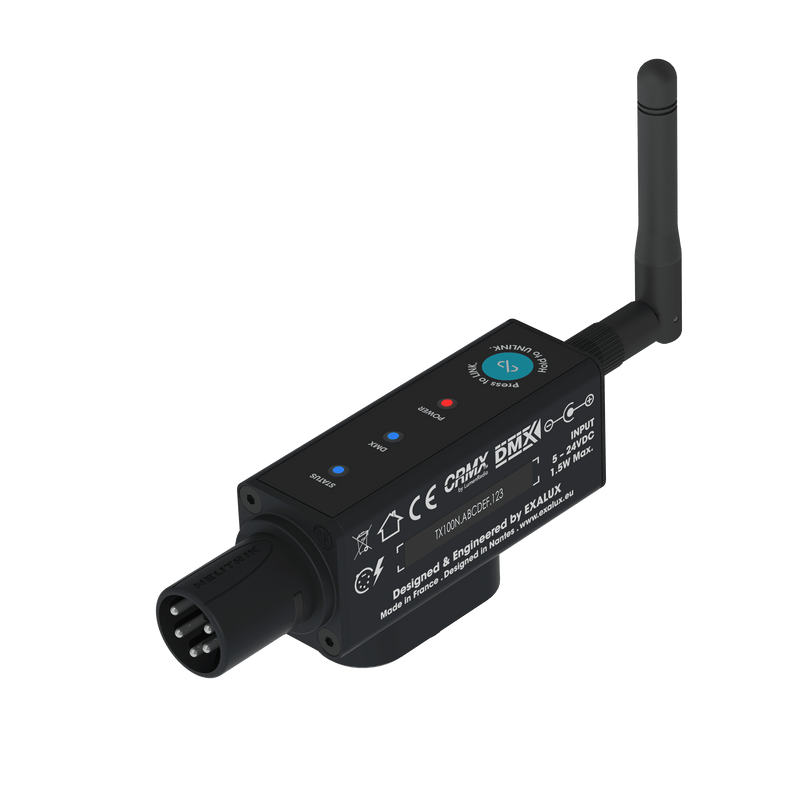

EXALUX™ CONNECT TX100N

EXALUX™ CONNECT TX100N is an ultra-compact wireless DMX transmitter that can be used in the studios or on location.

CONNECT TX100N, in short:

• Built-in LumenRadio CRMX™ transmitter

• 1 DMX universe

• Wide range DC power mode

• PoD (Power Over DMX) compliant

• Aluminum unibody enclosures

• Neutrik™ XLR connectors, industry standard compliant.

CONNECT TX100N features PoD technology which enables the unit to be powered via its XLR connector. The unit is fully compliant with all LumenRadio CRMX™ receivers, such as RX100S and RX200N

Technical Specifications

Power Connection

2.0x5.5MM DC jack

Interface: Unlink (switch), Power, Paired, DMX Status (LED)

Power Consumption: 1.5W

Housing / Mounting: Aluminum / M10

IP Rating: IP30

Certifications: CE, RoHS

Weight: 185g

RADIO INTERFACE

Standard/technology: LumenRadio CRMX™

Frequency: 2.402 ~ 2.480 GHz

Antenna: Omnidirectional, 2.4GHZ 2.0dBi, SMA

RF output: 20 dBm (100mW)

RF modulation: GFSK

Range: 500-1000m (depending on the environment)

DMX INTERFACE

Protocol: DMX512-A

Universe support: 1

DMX frame rate: 0,8-830Hz

End to end latency: < 5ms

DMX Output: Neutrik XLR 5 pins female

OPERATING CONDITIONS

Input Voltage: Min: 4.5VDC | Typ: 5VDC | Max: 26VDC

Storage T°: Min: -20°C | Typ : 25°C | Max: +75C

Operating T°: Min: -10°C | Typ : 25°C | Max: +55C

Connect the TX100N to your DMX console and turn it into a wireless DMX console allowing you to control all your CRMX compatible lighting fixtures.

PRODUCT BENEFITS

Designed for The Field

CONNECT TX100N feature unibody enclosures milled from a block of aluminum, allowing them to get a compact and stronger design.

The external antenna allows a long range, up to 500m depending on the transmitter and the environment.

Powered Over DMX

CONNECT TX100N CRMX transmitter is our first PoD-PD compliant system.

PoD concept has been designed to ease powering DMX dongles (power & data in the same 5pos DMX cable). POD means less cable and a single power supply for several devices.

Wide Range Power Mode

Thanks to its wide supply range (+5 to 24VDC), CONNECT TX100N can be powered through the USB connector of a DMX fixture, a Vlock battery via the D-TAP connector or any external PSU.

Universal Mounting

CONNECT TX100N unit can be mounted on industry-standard AV/Cinema clamps, tripods and arms thanks to the 3/8 UNC adapter.

It’s easy, simple and it will save you time!

Removable Antenna

The connect TX100N‘s antenna is removable, meaning you can replace it by a different model to better suit your needs.

LumenRadio CRMX™

Based on LumenRadio CRMX™ technology, EXALUX™ CONNECT RX200N brings DMX fidelity without any latency.
