MADRIX SOFTWARE 5

MADRIX 5 is the ultimate control tool for your LED lighting. Use pixel mapping at its best in 2D or 3D.

An award-winning software, and so much more. It is a tool for generative visuals and effects, and leading LED lighting controller since 2005. It is a quality piece of engineering made in Germany. It makes your stunning LED lighting designs possible.

MADRIX Software 5

SPECIFICATION

ULTIMATE CONTROL

From the smallest projects to the biggest ones – get the best out of your LEDs. MADRIX can produce a complete LED light show from a normal computer or laptop. Still, it can drive tens of thousands of LEDs without problems. This powerful software will not only allow you to control nearly any 2D LED display in every possible way, but real 3D LED applications as well. This makes it the ideal solution for your LED project.

ULTIMATE FLEXIBILITY

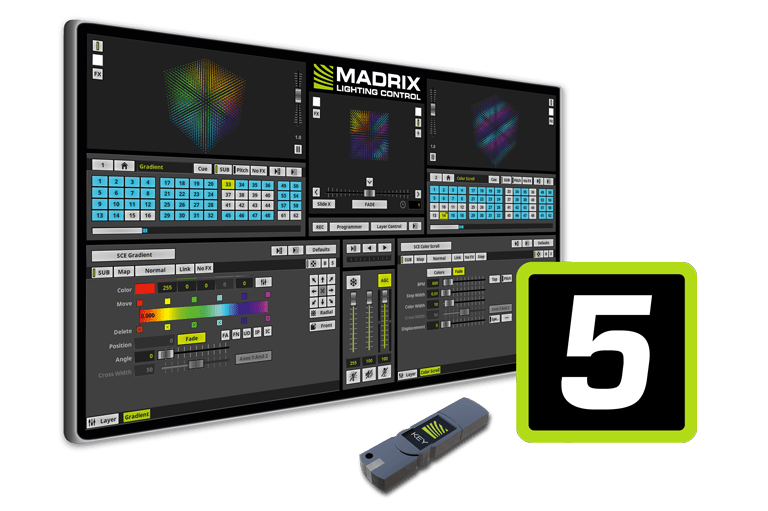

Bring your LED design to life with beautiful colors, stunning visuals, and spectacular effects. MADRIX adapts to your needs. Use it as LED lighting controller, VJ software, 2D pixel mapper, 3D voxel mapper, media server, or media creator. This software is easy to use with a VJ-like operation, 2 decks and a crossfader, plus 3 real-time previews to show your effects in advance.

2D PIXEL MAPPING

MADRIX makes it possible to control numerous LED fixtures, also of different kinds. Position them according to your needs in nearly any form or shape. Map pixel by pixel and achieve pixel-perfect results, even with the lowest of pixel resolutions. The result are crisp and sharp visuals on your LEDs.

3D VOXEL MAPPING IN X, Y, AND Z

The MADRIX Software provides a leading-edge feature set to fully control real 3D LED matrices. MADRIX supports volume rendering (voxel mapping). This approach is fundamentally different to the 3D projections or the physical layout of 2D surface areas that are widely known nowadays. It makes state-of- the-art installations a reality.

COMBINE 2D AND 3D

Combine any 2D project with 3D elements in order to create even more spectacular attractions for your audience, customers, and clients. MADRIX is a powerful tool that will help you realize the projects you want to build. Mapping LEDs is fast, creative, and fun. MADRIX certainly takes any LED display to the next level.

INDUSTRY STANDARDS FOR OUTPUT

MADRIX excels in flexibility. You can directly connect to a wide range of LEDs and compatible first-party or third-party LED controllers.



DMX-Based Output

• Art-Net I, II, 3, 4 (Unicast & Broadcast)

• DMX512

• Philips Color Kinetics KiNET (V1 / V2)

• Philips Hue

• SPI (via MADRIX NEBULA)

• Streaming ACN (sACN / E1.31) (Unicast & Multicast)



DVI-Based Output

• ColourSmart Link

• Colorlight A8

• Colorlight 5A

• Colorlight T9

• DVI (VGA, HDMI, etc.)

• Eurolite T9

Even more options are available via converters or bridging tools.

Output is defined through our MADRIX KEY dongle licenses.

INDUSTRY STANDARDS FOR INPUT, REMOTE CONTROL, AND AUDIO

MADRIX easily integrates with other lighting desk, consoles, controllers, and many other hardware or software tools.

• Art-Net I, II, 3, 4

• ASIO

• CITP

• DMX512

• GamePort

• MA-Net 1 / MA-Net 2

• MADRIX I/O

• MADRIX ORION

• Media (Images, Pictures, Logos, Videos, Text, Live Capturing, Screen Capturing)

• MIDI

• Remote HTTP (Web Server)

• Streaming ACN (sACN / E1.31)

• Time Code (Art-Net / MIDI / SMPTE / System Time)

•WDM

• Blackmagic Design (DeckLink, Intensity, and more)

• NewTek NDI (Send & Receive)

Spout (Send & Receive)

Input is not limited by the MADRIX KEY license system.

MADRIX KEY

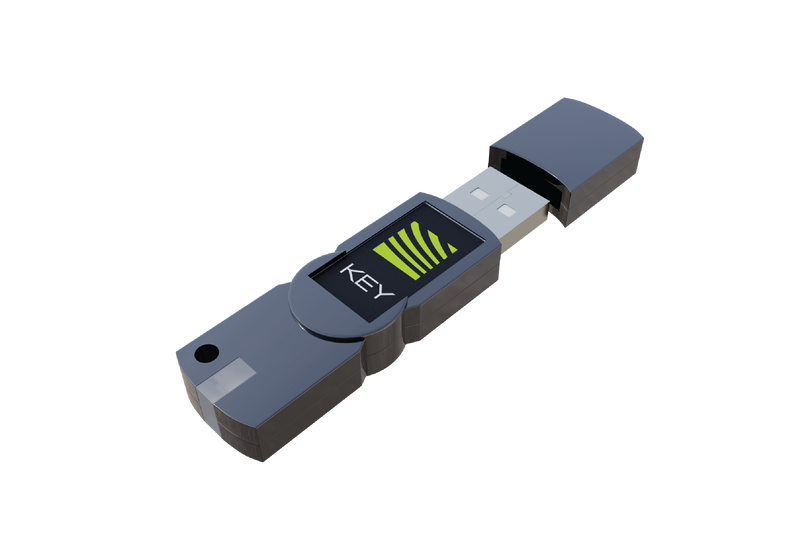

The MADRIX KEY is a USB dongle that unlocks the features or output for the MADRIX 5 Software or MADRIX RADAR Software by holding the corresponding license. You can freely switch between different PCs as it is not bound to a specific system. It only needs to be activated online once.

MADRIX 5 License Upgrades

You can easily upgrade the license on your MADRIX KEY to any higher license at any time in order to increase the available output. They can simply be processed online. Please contact your dealer for more information.

Update To MADRIX 5

Meet the next generation of ultimate LED control. See the main new features here and dive into unprecedented possibilities. Make sure to update, since MADRIX 3 project support ends May 07, 2020!

MADRIX 5 KEY start provides the output license for 2x 512 DMX channels and 64 x 64 DVI voxels for MADRIX 5.

MADRIX 5 KEY entry provides the output license for 8x 512 DMX channels and 128 x 128 DVI voxels for MADRIX 5.

MADRIX 5 KEY basic provides the output license for 32x 512 DMX channels and 512 x 512 DVI voxels for MADRIX 5.

MADRIX 5 KEY professional provides the output license for 128x 512 DMX channels and 1,024 x 1,024 DVI voxels for MADRIX 5.

MADRIX 5 KEY ultimate provides the output license for 512x 512 DMX channels and 2,048 x 1,024 DVI voxels for MADRIX 5.

MADRIX 5 KEY maximum provides the output license for 2,048x 512 DMX channels and 2,048 x 1,024 DVI voxels for MADRIX 5.

YOU CAN SERVE MEDIA

Use the media server features and conveniently load and play back images, pictures, and videos. Or use live video signal capturing, screen capturing, scrolling text (ticker), and more. But what if you are not using a video screen at all? Videos are great media for rectangular screens, but the possibilities are quickly exhausted for creative 2D LED setups or 3D.

BUT OFTEN, VIDEO IS NOT ENOUGH

The MADRIX Software is an effect generator with media server features and outstanding capabilities to display unique real-time effects on your LEDs. This is the main advantage. Endless stunning and fully customizable visuals are created live for you with the built-in graphics engine and rendering engine. From simple colors to sophisticated visuals – all is possible.

AUDIO-REACTIVE VISUALS

MADRIX features a state-of-the-art audio analysis. It can process any live audio signal and create stunning real-time lighting visuals. These live effects will create a light show that runs in sync with your music. And thanks to the integrated effects generator, you can also create many lighting patterns without audio input. On top, you will find an unprecedented level of customization available for all visuals.

ULTIMATE CREATIVITY

Creating stunning light effects has never been easier. Use video-like visuals without the need for videos. Creating videos specifically for a project can be time-consuming, costly, and unpractical. Let the software produce stunning effects, visuals, and animations for you. And you can always customize everything, such as speed, color, shape, direction, size, movement, position, brightness, and much more.

CREATE STUNNING VISUALS IN SECONDS

MADRIX allows you to produce extraordinary live visuals. You don’t need to invest a lot of time for programming. With MADRIX, you quickly create visuals and bring creative and diverse lighting effects to any LED installation. In addition, apply many advanced features you would not want to miss. Use layers of effects and media, quickly modify visuals via FX filters, combine effects via mix modes, control fixture group intensities, and many more.

MADRIX EFFECTS

Choose from 5 different effect categories and over 55 built-in effects. SCE Effects do not require any sound and make up the most diverse set of patterns and effects. S2L, short for Sound2Light, brings your audio input to life. M2L, short for Music2Light, takes audio-based effects to an even deeper level. MAS allows you to create effects from scratch with the help of the advanced MADRIX scripting language. TRI, short for Trigger, adds a whole new level of interactivity as you can set off visuals with your manual input.

LED FIXTURES

The library already includes a large variety of fixture profiles. Use 1-channel, 2-channel, RGB, or RGBW fixtures, or any variant of these. Use the Fixture Editor for your own profiles. With MADRIX, it is easy to manage the wide range of fixtures, such as pars, tiles, tubes, tape, curtains, video screens, and more. Combine DMX-based and DVI-based LED products as needed, use different fixture types in the same setup, and control the whole installation or only parts of it. With MADRIX, you are in control.

BUILT-IN TOOLS

In addition, the software includes a full range of helpful and productive tools. This includes the Fixture Editor, but also the Art-Net Time Code Sender. There is also the Logfile, Preview Benchmark, and MADRIX hardware updaters, as well as tools for restore and quick support. You can also use the DMX Fader Tool for single channel control or Task Watcher, MIDI Watcher, and DMX Watcher for performance and data monitoring.

PREMIUM QUALITY

For us, it is very important to offer you the complete package. This does not only include a product that works and fits your needs, but also extensive user manuals, tutorials, a worldwide distribution network for great sales and design services, and world-class technical support. This also includes regular software updates with improvements as well as new features. MADRIX is most versatile and will help you to get the most out of modern LED technology.

WHAT’S IN THE BOX

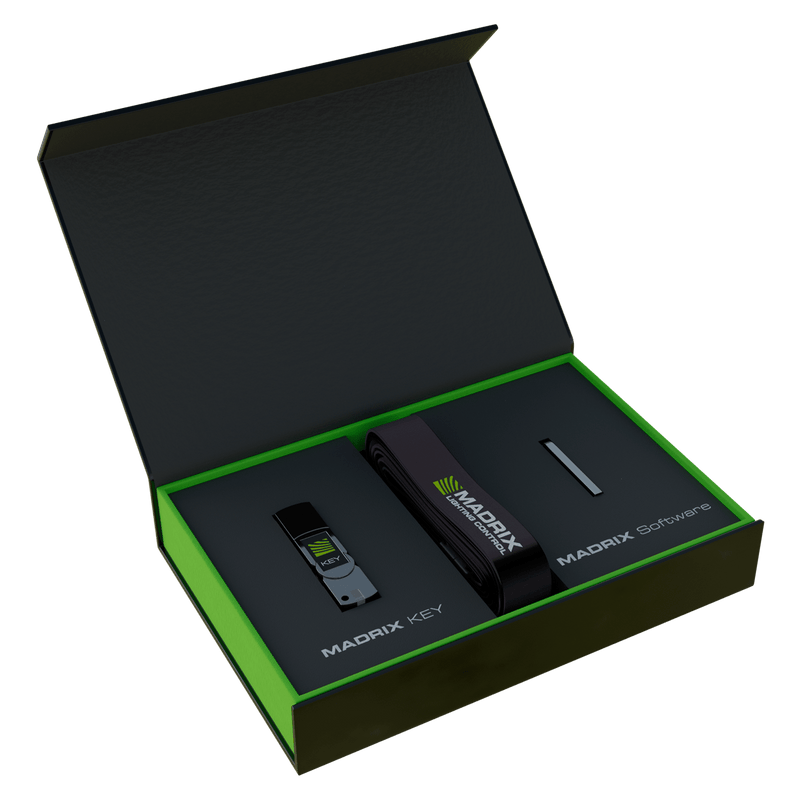

The beautiful, high-quality box includes 1x MADRIX KEY, 1x USB flash drive incl. MADRIX 5 Software, 1x lanyard, and 1x quick start guide. All tools and all user manuals are provided digitally.
